Подробная информация о продукте:
|
| Номер детали: | IRGIB4630DPBF | Изготовитель: | Технологии Infineon |
|---|---|---|---|
| Описание: | IGBT 600V 47A 206W TO220 | Категория: | Транзисторы - IGBTs - одиночные |
| Семья: | Транзисторы - IGBTs - одиночные | Серия: | * |
| Part Status | Obsolete |
|---|---|
| IGBT Type | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Current - Collector (Ic) (Max) | 47A |
| Current - Collector Pulsed (Icm) | 54A |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V, 18A |
| Power - Max | 206W |
| Switching Energy | 95µJ (on), 350µJ (off) |
| Input Type | Standard |
| Gate Charge | 35nC |
| Td (on/off) @ 25°C | 40ns/105ns |
| Test Condition | 400V, 18A, 22 Ohm, 15V |
| Reverse Recovery Time (trr) | 100ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |

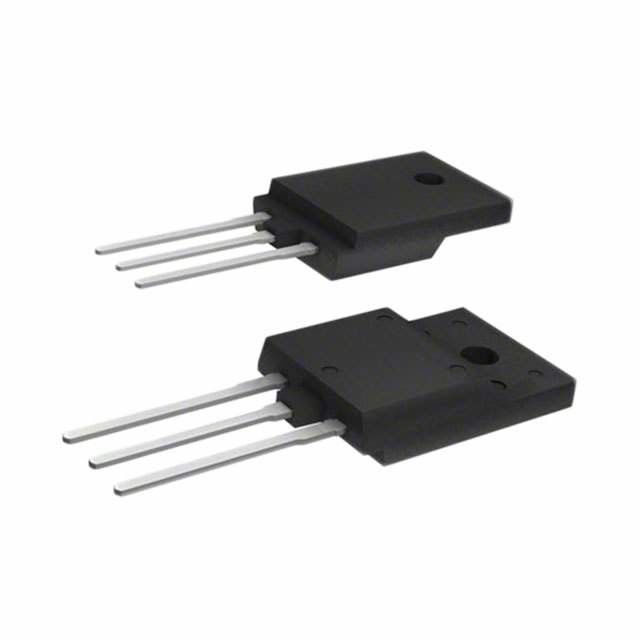

| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220 Full Pack |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
