Подробная информация о продукте:
|
| Номер детали: | PC354NJ0000F | Изготовитель: | Острая микроэлектроника |
|---|---|---|---|

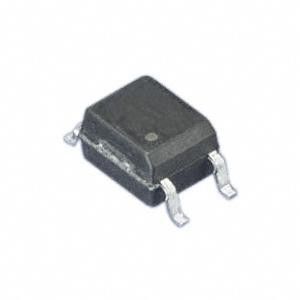

| Описание: | TRANS 4-SMD OPTOISOLATOR 3.75KV | Категория: | Optoisolators - транзистор, фотовольтайческий выход |
| Семья: | Optoisolators - транзистор, фотовольтайческий выход |
| Part Status | Active |
|---|---|
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 20% @ 1mA |
| Current Transfer Ratio (Max) | 400% @ 1mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Input Type | AC, DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50mA |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-Mini-Flat |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
