Подробная информация о продукте:
|

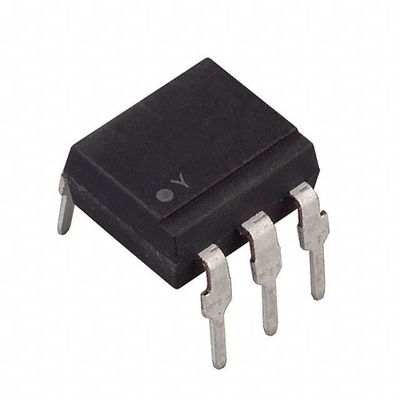

| Номер детали: | CNY17-4 | Изготовитель: | Lite-на Inc. |
|---|---|---|---|
| Описание: | TRANS W/BASE 6DIP OPTOISO 5KV | Категория: | Optoisolators - транзистор, фотовольтайческий выход |
| Семья: | Optoisolators - транзистор, фотовольтайческий выход |
| Part Status | Active |
|---|---|
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 160% @ 10mA |
| Current Transfer Ratio (Max) | 320% @ 10mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 5µs, 5µs |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | 150mA |
| Voltage - Forward (Vf) (Typ) | 1.45V |
| Current - DC Forward (If) (Max) | 60mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
