Подробная информация о продукте:
|
| Номер детали: | S2S4A00F | Изготовитель: | Острая микроэлектроника |
|---|---|---|---|

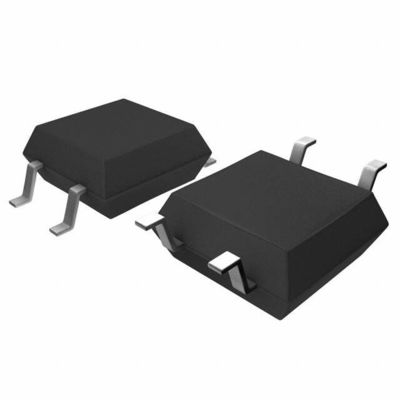

| Описание: | ТРИАК 4SMD OPTOISOLATOR 3.75KV | Категория: | Optoisolators - триак, SCR вывел наружу |
| Семья: | Optoisolators - триак, SCR вывел наружу |
| Part Status | Active |
|---|---|
| Output Type | Triac |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Voltage - Off State | 600V |
| Static dV/dt (Min) | 100V/µs |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | 50mA |
| Current - Hold (Ih) | 3.5mA |
| Turn On Time | 50µs (Max) |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50mA |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD |
| Supplier Device Package | 4-SMD |
| Approvals | CSA, UR |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
