Подробная информация о продукте:
|
| Номер детали: | TT8K2TR | Изготовитель: | Полупроводник Rohm |
|---|---|---|---|

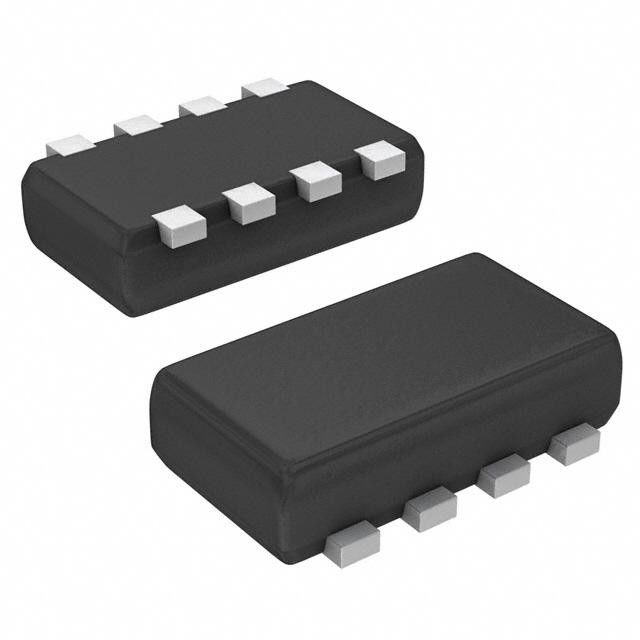

| Описание: | MOSFET 2N-CH 30V 2.5A TSST8 | Категория: | Транзисторы - FETs, MOSFETs - массивы |
| Семья: | Транзисторы - FETs, MOSFETs - массивы |
| Part Status | Active |
|---|---|
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 2.5A |
| Rds On (Max) @ Id, Vgs | 90 mOhm @ 2.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 3.2nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 180pF @ 10V |
| Power - Max | 1.25W |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Flat Lead |
| Supplier Device Package | 8-TSST |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
